Why Cable Wrap for Manufacturing Equipment Is Critical to Uptime and Equipment Longevity
Cable wrap for manufacturing equipment is a spiral-cut protective sleeve that bundles and shields wires, cables, hoses, and pneumatic tubes from abrasion, mechanical stress, and harsh industrial conditions.
Here is a quick overview of what to know before choosing a cable wrap solution:
| Factor | What to Look For |
|---|---|
| Material | Polyethylene, Nylon, or PTFE based on temperature and chemical exposure |
| Temperature range | From -76°F (Polyethylene) up to 500°F (PTFE) |
| Protection type | Abrasion resistance, organization, UV resistance |
| Installation | Wraps on without disconnecting cables; reusable and retrofittable |
| Sizing | Match wrap outside diameter to cable bundle diameter |
| Compliance | Look for ISO 9001:2015, REACH, and RoHS certification |
| Industries | Aerospace, robotics, automated manufacturing, public utilities |
In manufacturing environments, unprotected cables and hoses are a leading cause of unplanned downtime. Abrasion from moving parts, exposure to chemicals and fluids, and mechanical stress from repeated motion all degrade cables faster than most maintenance teams expect.
The right cable wrap doesn’t just organize your wiring runs — it directly extends the service life of the cables themselves, reducing replacement costs and keeping production lines running.
One key distinction worth noting early: spiral cable wrap is not a complete enclosure. Its open spiral design has gaps, which allow for individual wire breakouts at any point along the bundle — a major advantage in automated manufacturing and robotics. But it means it is not a sealed barrier against environmental exposure.
This guide focuses on Heli-Tube® spiral wrap from M.M. Newman Corporation — a UL recognized, ISO 9001:2015 certified, Made in the USA solution available in multiple materials and sizes for demanding industrial applications.
The Role of Cable Wrap for Manufacturing Equipment in Industrial Reliability
In the high-stakes world of modern manufacturing, reliability is the primary metric of success. Whether it is a robotic assembly arm or a heavy-duty hydraulic press, the “nervous system” of the machine—its cables and hoses—must be protected at all costs. Using a cable wrap for manufacturing equipment is one of the most effective ways to ensure this reliability.
Defending Against Abrasion and Mechanical Stress
Manufacturing floors are active environments. Cables are frequently subjected to “high-drag” scenarios, where they rub against machine frames, concrete floors, or other moving components. Over time, this friction wears through insulation, leading to short circuits or signal loss. Heli-Tube® spiral wrap acts as a sacrificial layer of defense. It absorbs the friction and impact, preserving the integrity of the wires inside.

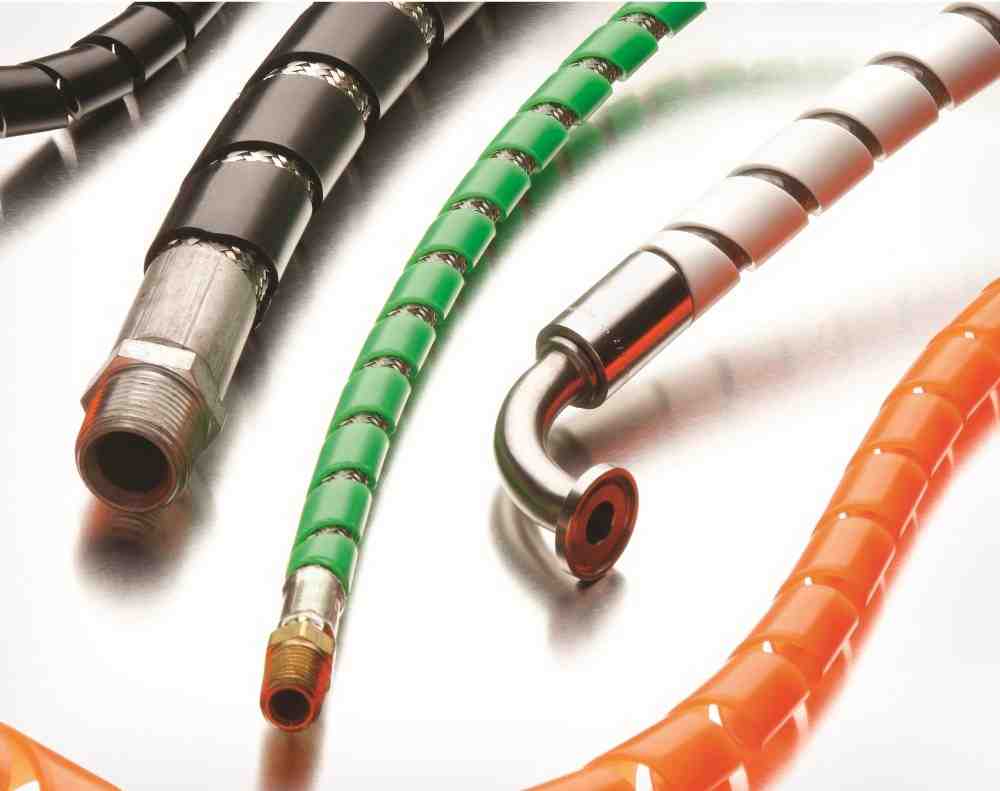

Safeguarding Hydraulic and Pneumatic Systems
Hydraulic hoses are critical components in industries like agriculture, mining, and heavy machinery. A hose failure doesn’t just stop production; it can create safety hazards and environmental messes. Industrial-grade spiral wrap is often used as a superior protection with spiral hose wrap, extending the service life of hoses and minimizing production losses from sudden ruptures.
Reducing Downtime and Maintenance Costs
When a cable fails, the cost is rarely just the price of the cable. It is the cost of the technician’s time, the lost units of production, and the potential damage to other equipment. By implementing a detailed guide to industrial cable protection, facilities can transition from reactive repairs to proactive management. You can effectively avoid downtime with spiral cable wrap by organizing bundles so they are less likely to be snagged or crushed.
Material Selection: Engineering Heli-Tube® for Harsh Environments
Selecting the right material is the most important step in choosing a cable wrap for manufacturing equipment. Each industrial environment has unique stressors—some face extreme cold, while others deal with caustic chemicals or high-voltage electricity. M.M. Newman Corporation provides several specialized materials to meet these needs, all of which are REACH and RoHS compliant and manufactured under ISO 9001:2015 standards.
To find the right spiral wrap material, consider the following primary options:
- Polyethylene: This is the go-to material for general-purpose industrial applications. It is lightweight, cost-effective, and highly resistant to ordinary solvents.
- Standard Polyethylene: Ideal for indoor use with a temperature range of -76°F to 190°F.
- UV-Resistant Black Polyethylene: Specifically engineered with ultraviolet-absorbing properties, making it perfect for outdoor manufacturing equipment or utilities exposed to direct sunlight for long periods.
- Fire-Resistant Polyethylene: A self-extinguishing option for applications where fire safety is a concern but temperatures remain moderate (up to 176°F).
- Nylon: If your equipment operates in an enclosed environment where fire risk is a factor, Nylon Heli-Tube® is recommended. It is self-extinguishing and does not produce toxic byproducts when exposed to flame. It is also exceptionally abrasion-resistant and operates from -40°F up to 250°F.
- PTFE: For the most extreme conditions, PTFE Heli-Tube® spiral wrap is the gold standard. It is chemically inert, non-flammable, and possesses a UL VW-1 flammability rating.
Specialized Cable Wrap for Manufacturing Equipment in High-Heat Zones
In industries like aerospace and public utilities, equipment often operates at temperatures that would melt standard plastics. This is where PTFE Heli-Tube® spiral wrap shines. With an incredible operating range of -320°F to 500°F (-200°C to 260°C), it can withstand the heat of an engine compartment or the cryogenic cold of liquid nitrogen systems. It meets ASTM-D3295 Group 4 specifications, ensuring it stands up to the rigorous demands of military and aerospace applications.
Optimizing Robotics with Cable Wrap for Manufacturing Equipment
Robotics and automated manufacturing require a unique balance of protection and flexibility. Unlike stationary equipment, robotic arms are in constant motion, requiring the cable management system to move with them without binding.

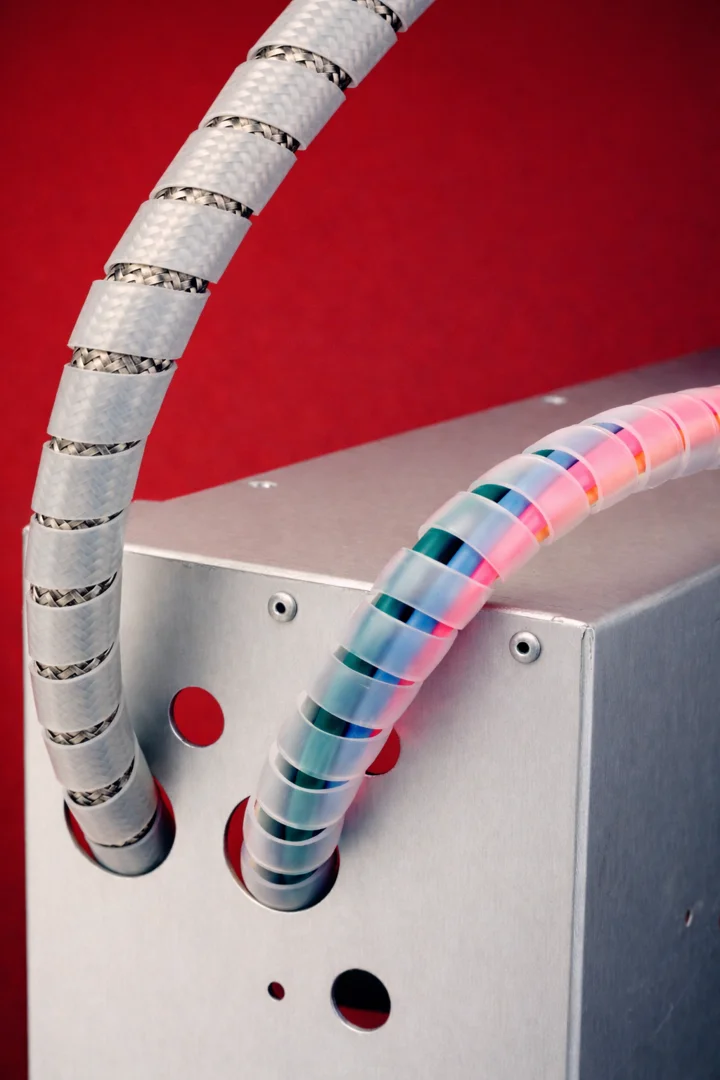

Heli-Tube® spiral wrap is ideal for this because it can be used to clamp bundles to standoffs and robotic components securely. One of the most significant advantages is the ability to create individual wire breakouts. Because of the spiral design, a single wire or air hose can exit the bundle at any point to connect to a specific sensor or actuator, while the rest of the bundle continues to the end of the arm.
To further aid in complex automated manufacturing setups, Heli-Tube® is available in various colors for color-coded labeling. This allows technicians to identify specific lines (e.g., blue for air, red for power) at a glance, significantly speeding up troubleshooting and repair.
Installation and Sizing Guidelines for Industrial Cable Bundles
One of the reasons professionals prefer Heli-Tube® is the ease of installation. Unlike braided sleeves that often require you to disconnect cables to thread them through, spiral wrap can be applied to pre-installed wiring. It “wraps on like tape,” making it perfect for retrofitting existing machinery without causing additional downtime.
Understanding Sizing
Selecting the correct size is vital for ensuring the wrap stays secure. If the wrap is too large, it will slide; if it is too small, the gaps between the spirals will be too wide, leaving the cables exposed.
When understanding spiral cable wrap sizes, you should look at three main factors:
- Outside Diameter (O.D.): The nominal size of the spiral wrap itself.
- Bundle Range: The minimum and maximum diameter of the cable bundle the wrap is designed to hold.
- Wall Thickness: Thicker walls provide more protection against crushing and heavy abrasion.
| Heli-Tube® Size (O.D.) | Typical Bundle Range | Recommended Application |
|---|---|---|
| 1/8″ | 1/16″ to 1/2″ | Small electronics, internal control panels |
| 1/4″ | 3/16″ to 2″ | General wiring harnesses, small robotics |
| 1/2″ | 3/8″ to 4″ | Industrial machinery, hydraulic lines |
| 1″ | 3/4″ to 7″ | Large bundles, heavy-duty manufacturing equipment |
For a more comprehensive look at how to organize your workspace, refer to our guide on how to cable management.
Installation Flexibility
Heli-Tube® can be supplied in both forward cut and reverse cut orientations, depending on the specific needs of the machine’s layout. Because it is highly reusable, it can be unwrapped and reapplied if you need to add a new wire to the bundle later. This reusability makes it a much more sustainable and cost-effective choice than single-use plastic ties or adhesive tapes.
Comparing Cable Wrap to Alternative Protection Methods
When researching cable wrap for manufacturing equipment, you may encounter alternatives like braided sleeves or heat-shrink tubing. While these products have their place, spiral wrap offers distinct advantages in industrial settings.
Spiral Wrap vs. Braided Sleeves
Braided sleeves provide a more complete covering, but they lack the ease of access found in spiral designs.
- Breakouts: Spiral wrap allows for breakouts at any point; braided sleeves usually require cutting the material to exit a wire, which can lead to fraying.
- Retrofitting: You can install spiral wrap on a machine that is already fully assembled. Braided sleeves typically require one end of the cable to be disconnected.
- Maintenance: If a wire inside the bundle needs inspection, you can simply unwrap a section of the spiral wrap. With a sleeve, you often have to remove the entire protection.
Environmental Gaps: A Feature, Not a Flaw
A common question is whether the gaps in spiral wrap are a disadvantage. In many manufacturing environments, these gaps are actually beneficial. They allow for:
- Moisture Drainage: In wash-down environments or outdoor settings, water can be trapped inside solid tubing, leading to corrosion. Spiral wrap allows moisture to drain away.
- Heat Dissipation: High-voltage cables generate heat. The open design of spiral wrap tubing benefits & applications by allowing heat to escape, preventing the cables from overheating.
Frequently Asked Questions about Manufacturing Cable Protection
Is Heli-Tube® spiral wrap a complete covering for environmental protection?
No. It is important to understand what is the purpose of spiral cable wrap?. While it provides excellent mechanical protection against abrasion and impact, it is not a sealed enclosure. Because of the spiral gaps, it does not protect cables from dust, fine debris, or direct liquid submersion. It is designed to bundle and shield, not to act as a waterproof conduit.
Does Heli-Tube® spiral wrap offer vibratory dampening?
Yes. While Heli-Tube® is excellent for organizing and protecting against mechanical wear, it also offers vibratory dampening. If your equipment suffers from extreme high-frequency vibration that requires dampening to protect sensitive electronics, additional specialized mounting hardware may be required. However, it does help prevent “vibration rub,” where cables vibrate against each other and wear down their insulation.
How is Heli-Tube® Spiral Wrap Cut?
Heli-Tube® is designed to be user-friendly. It can be easily cut to the desired length using standard manual tools such as industrial scissors or a sharp utility knife. No specialized machinery is required for the installation or trimming of the spiral wrap itself.
Conclusion
Since 1956, M.M. Newman Corporation has been a world-leading supplier of high-performance cable management solutions. Our Heli-Tube® spiral wrap is a testament to American manufacturing quality, offering a versatile and durable way to protect the vital components of your production line.
By choosing the right material—whether it’s the ruggedness of Polyethylene, the safety of Nylon, or the extreme temperature resistance of PTFE—you are making a strategic investment in your facility’s uptime. Our just-in-time service ensures that you have the protection you need exactly when you need it, helping you maintain an efficient, ISO-compliant operation.
Beyond our signature spiral wrap, M.M. Newman Corporation also offers specialized tools for other industrial needs, such as our heavy-duty hot knife. Operating at 60 Watts and reaching 900°F, this tool is the professional choice for clean, sealed cuts on materials like awnings and sailcloth.
When it comes to protecting your equipment, don’t settle for generic solutions. Wrap it up with the experience and quality of M.M. Newman Corporation.
