Why Cable Protection Matters More Than You Think
Polyethylene spiral wrap is a flexible, coiled plastic sleeve that wraps around cables, hoses, and wire bundles. It protects them from abrasion, organizes them for easier maintenance, and allows individual wires to break out as needed.
- Material: Made from low-density polyethylene (LDPE), a lightweight, durable plastic.
- Temperature Range: Operates from -60°C to 88°C (-76°F to 190°F).
- Key Benefits: Protects against abrasion, resists solvents, is easy to install, and is reusable.
- Common Uses: Industrial cables, pneumatic tubes, hoses, wire harnesses, and general cable management.
- Available Sizes: For bundles from 1/16″ to 10″ in diameter.
- Colors: Natural (translucent), black (UV-resistant), and various colors for labeling.
Tangled, damaged, or disorganized cables can cause frustration, equipment failure, and maintenance nightmares. Polyethylene spiral wrap solves these problems by bundling cables in minutes, protecting them from damage, and allowing individual wires to be pulled out without unwrapping the entire bundle.
Unlike rigid tubing that kinks or single-use zip ties, spiral wrap remains flexible and is reusable. The material is tough, floats in water, resists most solvents, and absorbs very little moisture (0.014%). It also meets the military specification Mil-P-21922A, demonstrating its reliability in demanding applications. Whether you’re managing industrial machinery or organizing your workspace, polyethylene spiral wrap delivers lasting protection and organization.
The Ultimate Guide to Polyethylene Spiral Wrap
What is Polyethylene Spiral Wrap and What Are Its Benefits?
In modern industry, cables and wires are vital, but they require protection. Polyethylene spiral wrap is a simple, effective solution for managing and safeguarding these conduits. It is a flexible, helically cut sleeve made from low-density polyethylene (LDPE) that coils around a bundle of cables or hoses.
Its primary benefits include:
Cable Bundling and Organization: It transforms tangled wires into a single, neat bundle, improving aesthetics and simplifying maintenance. This organization is key to preventing headaches during upgrades or repairs. For more insights, check out the Key Benefits of Spiral Wire Wrap.

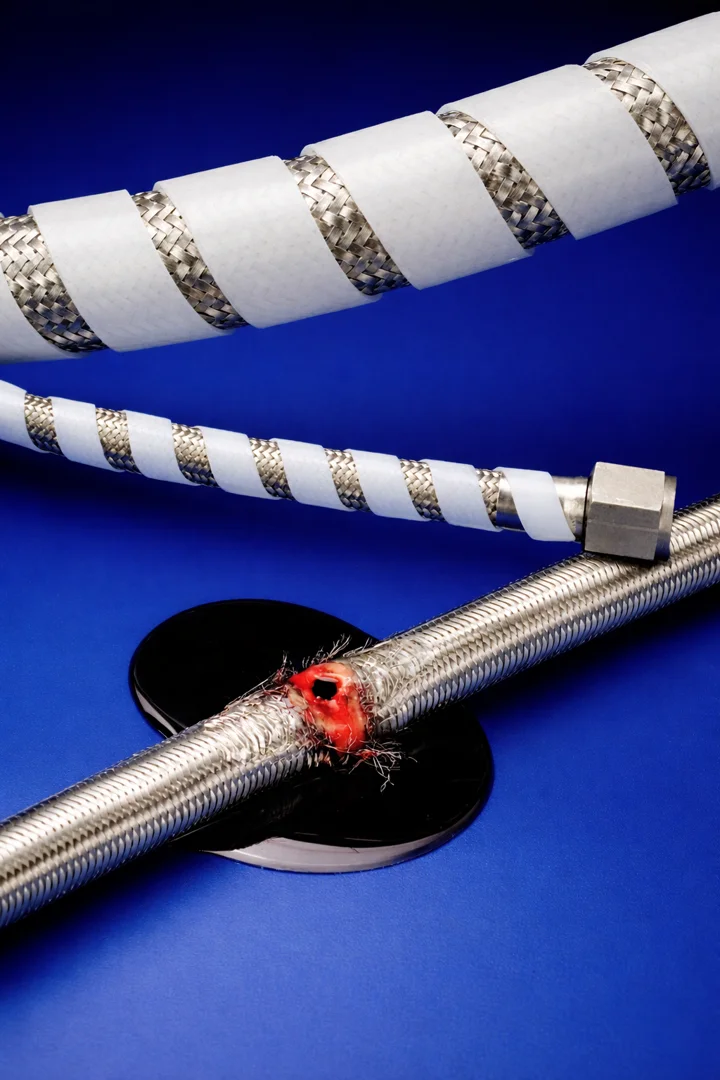

Abrasion Protection: In busy environments, cables can rub against sharp edges or moving parts. The durable polyethylene material acts as a resilient shield, extending the lifespan of wires and hoses. This is crucial in industrial settings where downtime is costly.
Flexibility and Reusability: Unlike rigid tubing, spiral wrap preserves the bundle’s flexibility. It is also easy to install and remove without waste, making it a cost-effective and sustainable choice. Individual cables can be accessed without disturbing the entire bundle, a feature not possible with other binding options. You can explore more about its advantages in Spiral Wrap Tubing Benefits & Applications.
These benefits help prevent downtime and improve workplace safety by reducing the risk of electrical faults or communication interruptions.
For a general overview of how cable management supports safe and reliable installations, see the background article on cable management.
Key Specifications and Performance Characteristics
The effectiveness of polyethylene spiral wrap comes from its material properties. M.M. Newman Corporation’s Heli-Tube® spiral wrap harnesses these properties to deliver a reliable product.
Key technical details include:
Temperature Range: It performs well across a broad temperature range, with continuous operation from -60°C to 88°C (-76°F to 190°F).
Chemical Resistance: The wrap is highly solvent-resistant up to 50°C (122°F) and shows high resistance to both acidic and alkaline substances, standing up to corrosive atmospheres.
Abrasion Resistance: Polyethylene provides a tough outer layer that protects wires and hoses from friction and general wear and tear, extending equipment life.
Specific Gravity: With a specific gravity of 0.92, polyethylene spiral wrap is lightweight and floats in water.
Low Moisture Absorption: It absorbs very little moisture (around 0.014%).
Military Specifications: For high-reliability applications, M.M. Newman Corporation’s Heli-Tube® spiral wrap is approved to Mil-P-21922A.
Understanding these specifications is crucial for selecting the right material. For a deeper dive, consult The Right Spiral Wrap Material for Your Application and additional reference data on polyethylene properties.

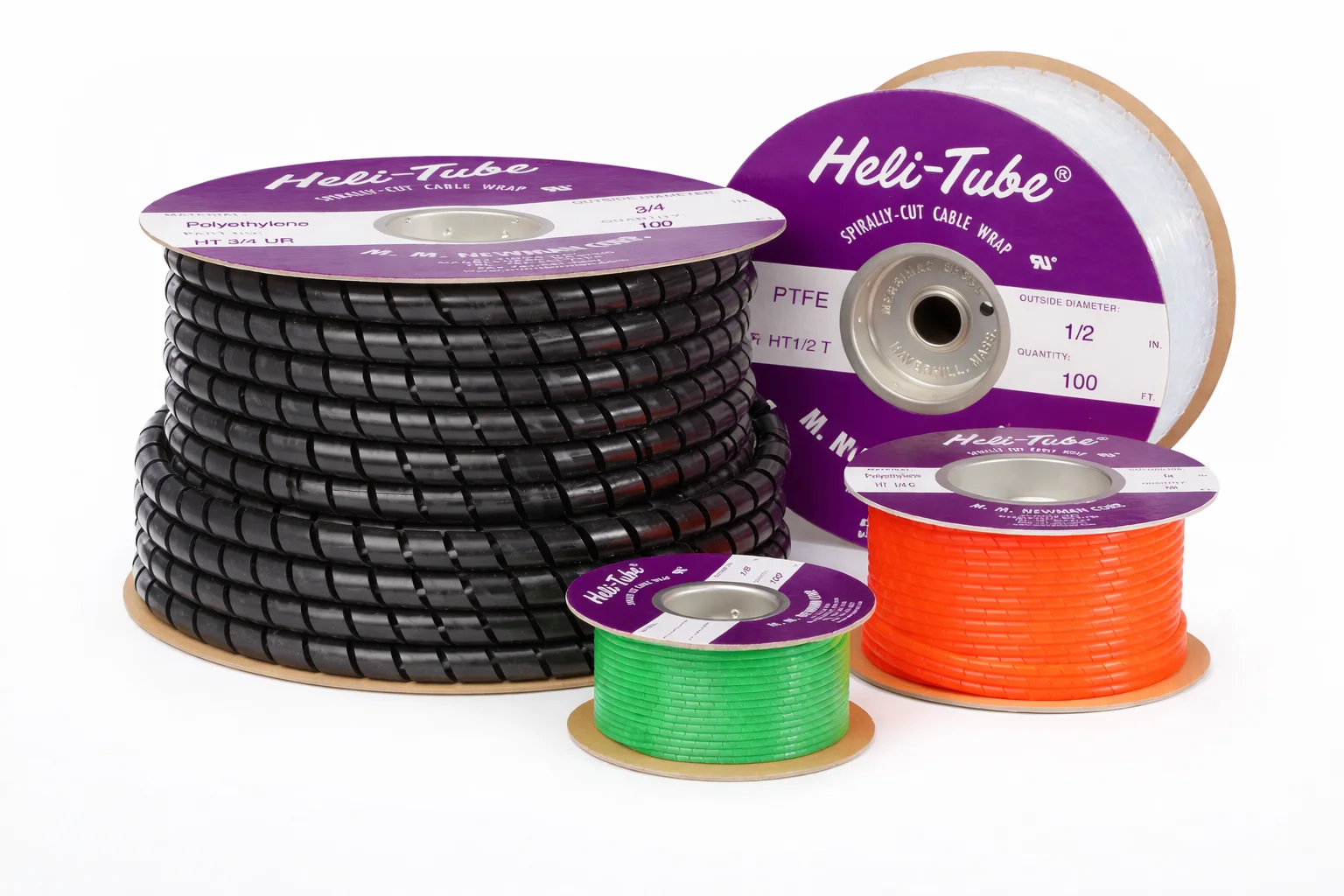

Choosing the Right Size, Type, and Color
Selecting the right polyethylene spiral wrap is key to optimizing function and aesthetics.
The most critical factor is choosing the correct size. Measure the outer diameter of your cable bundle; the wrap should be slightly smaller to ensure a snug fit. M.M. Newman Corporation offers Heli-Tube® spiral wrap for bundles from 5mm to 100mm.
Consider the different types available:
- Natural (Translucent) Wrap: This standard version is excellent for general indoor applications where visibility of the bundled cables may be desired.
- Black (UV-Resistant) Wrap: For outdoor use, this wrap contains UV stabilizers that protect the material from sunlight-induced degradation.
- Color-Coding: Spiral wrap is available in a spectrum of colors, which is a powerful tool for identifying wires and cables. For example, you can use red for power lines and blue for data lines to reduce errors and speed up troubleshooting.
When choosing, consider your bundle diameter, whether the application is indoors or outdoors, and if color-coding would improve efficiency. For a comprehensive guide, explore Spiral Cable Wrap Sizes & Materials. Also, consider the 3 Factors to Consider When Choosing Spiral Cable Wrap.
How to Install, Remove, and Use Polyethylene Spiral Wrap
A major appeal of polyethylene spiral wrap is its ease of use. The installation process is simple: start at one end of your cable bundle and wrap the spiral around the wires. The wrap’s natural memory will hold it securely.
A key advantage is its reusability. Unlike single-use fasteners, it can be uncoiled and re-applied multiple times. This is invaluable for systems that require frequent modifications.
The helical design also allows for breakouts, meaning individual wires or hoses can exit the main bundle at any point. This flexibility is a game-changer for complex wiring harnesses.
For outdoor use or harsh environments, black polyethylene spiral wrap is formulated with UV stabilizers to resist sunlight. The material’s inherent properties, such as its wide temperature range and chemical resistance, ensure reliable performance in demanding conditions, as validated by its approval to the military specification Mil-P-21922A.
For guidance on application, you can read How Should Spiral Wrap Be Applied? and watch this video guide on using spiral wrap.
Common Applications and Industries
The versatility of polyethylene spiral wrap enables its use across a diverse array of industries.
In industrial machinery, it keeps wiring for robotic arms and hydraulic systems tidy and protected from movement and vibration. It also protects pneumatic tubes and hydraulic hoses in manufacturing and automation from chafing and wear.
The automotive industry uses it to bundle wiring harnesses, protecting them from engine heat and road debris. In marine manufacturing, it shields electrical systems from moisture and salt, as detailed in How Spiral Wrap for Wires is Used in Boat Manufacturing.
Other common uses include:
- Office cable management
- Organizing circuitry in robotics and electronics
- Shielding hoses on construction and agricultural equipment
- Managing cables in data centers
- Tidying up home entertainment systems
Any scenario involving multiple flexible conduits can benefit from the organization and protection offered by polyethylene spiral wrap. See more at our Industry Applications section.
Cost-Effectiveness and Long-Term Value
While initial cost is a factor, it’s important to consider the long-term value of polyethylene spiral wrap.
Compared to single-use fasteners like zip ties, spiral wrap is reusable. This reduces material waste and maintenance labor hours, leading to significant savings over time.
The real value comes from its protective qualities. By shielding cables and hoses from abrasion and stress, it extends their lifespan and helps prevent equipment downtime. A single damaged cable can halt a production line, leading to lost revenue and expensive repairs. Proper cable protection is a proactive measure that safeguards your operations. M.M. Newman Corporation offers resources on how to Avoid Downtime: Spiral Cable Wrap and an ebook on how to Reduce Possibility of Equipment Downtime with Spiral Cable Wrap Ebook.
The ease of maintenance is another benefit. Neatly bundled and color-coded cables make troubleshooting faster and safer. This efficiency contributes to lower labor costs and increased uptime. For a broader understanding, dig into Cable Management 101.
Your Partner in Protection and Organization
In a world reliant on complex systems, effective cable management is essential. Polyethylene spiral wrap is a versatile, durable, and cost-effective solution for organizing and protecting your critical wires, cables, and hoses.
With robust material properties, simple installation, and reusability, polyethylene spiral wrap delivers tangible benefits across countless applications. It guards against abrasion, simplifies organization, and helps prevent costly downtime.
For over six decades, M.M. Newman Corporation has been a world-leading supplier of this technology. Since 1956, we have built our reputation on extensive experience and efficient service. We manufacture Heli-Tube® spiral wrap, a brand synonymous with quality and reliability, designed to meet the needs of industries in Marblehead, MA, the United States, and around the world.
Choosing M.M. Newman Corporation’s Heli-Tube® spiral wrap is an investment in a solution backed by decades of expertise. Whether you want to improve safety, streamline maintenance, or organize cable chaos, polyethylene spiral wrap is the ideal choice.
Ready to transform your cable management? Explore our full range of Heli-Tube® spiral wrap products today and find the difference that quality protection can make.
